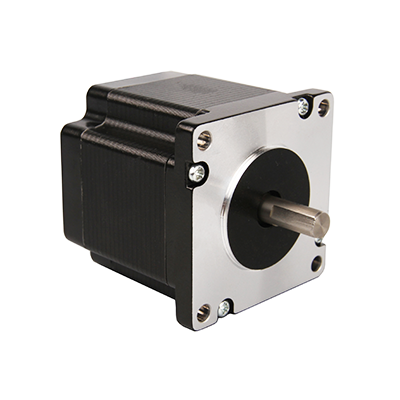

NEMA 24 Bipolè 1.8deg 2.3Nm (320oz.in) 4A 2.8V 60x60x75mm 4 Fils Stepper Motor
Nimewo Pati Manifakti: 60H075H-4004
Gwosè ankadreman: 60x60mm
Kalite motè: Bipolè Stepper
Etap Ang: 1.8 degre
Kenbe koupl: 2.3Nm (320oz.in)
Rated aktyèl/faz: 4A
Rated Voltage: 2.8V
Rezistans faz: 0.7ohms
Inductance: 2mH ± 20% (1KHz)
Longè kò: 75mm
- Livrezon rapid
- Kalite asirans
Personnalisation disponib
Pwodwi Entwodiksyon
Paramèt teknik
|
Atik |
Espesifikasyon |
|
Etap Angle Presizyon |
±5% |
|
Rezistans Presizyon |
±10% |
|
Presizyon Inductance |
±20% |
|
Ogmantasyon Tanperati |
80K Max. |
|
Tanperati anbyen |
-20 degre ~+50 degre |
|
Rezistans izolasyon |
10OMΩMin.@ 500VDC |
|
Dyelèktrik fòs |
Yon minit @ 500VAC∙5mA Max. |
|
Arbr Radial Jwe |
0.06Max.@450g |
|
Arbr Axial Jwe |
0.08Max.@100g |
Espesifikasyon teknik
|
Modèl No. |
Polè |
rated |
Aktyèl/ |
Rezistans/ |
Inductance/ |
Kenbe |
# nan |
Wotè |
Pwa |
Longè |
|
|
V |
A |
Ω |
mH |
oz-nan |
kgf · cm |
g�% b7cm2 |
KG |
manm |
|||
| 60H075H-4004 | Bipolè | 2.8 | 4 | 0.7 | 2 | 320 | 23 | 4 | 700 | 1.2 | 75 |

Rale koub koupl

FAQ
K: Ki karakteristik motè stepper ou yo
A: 1. Pwodwi a se ti nan gwosè;
2. Ba bri;
3. Estrikti a se senp, pratik, epi fasil pou kenbe;
4. Long lavi sèvis;
5. Segondè presizyon, solid, ak rezistans.
K: Ki koupl detansyon an?
A: koupl detansyon se koupl nan ki stator la fèmen rotor la lè motè stepper la pa kouran.
K: Ki sa ki sou sèvis apre-lavant ou a?
A: garanti a nan motè nou yo anjeneral 12 mwa, si gen pwoblèm kalite, nou pral fè aranjman pou eksprime entènasyonal la imedyatman, asire w ke pati yo ranplasman yo delivre pi vit ke posib.
K: Konbyen tan ou te fabrike motè stepper?
A: Nou te espesyalize nan pwodwi pi apik motè pou plis pase 20 ane.
